# Redirect payment flow

## Prerequisites

* Your business account with Inqud is set up, complete with API tokens configured.
* The Crypto Widget has been established and configured within the Inqud platform.
* The Crypto Widget is active.
* **Checkout** web-hook is configured.

## Workflow

<figure><img src="https://2493659114-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MVvChLJdAqFu9uz7E-7%2Fuploads%2FaqTBsuZHxVPzwI9Dn3x2%2Fimage.png?alt=media&#x26;token=25cda594-4f8d-478c-9b3b-b722880bffec" alt=""><figcaption></figcaption></figure>

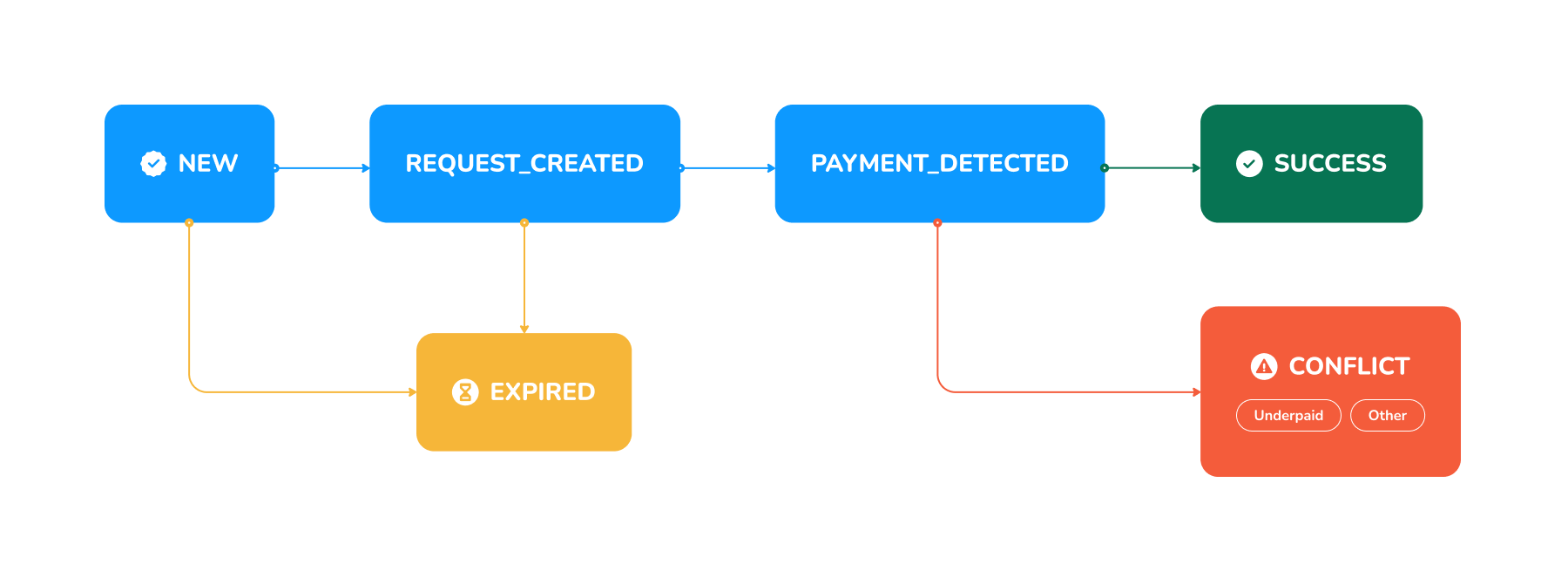

#### Checkout status transitions

<figure><img src="https://2493659114-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MVvChLJdAqFu9uz7E-7%2Fuploads%2Fzi1B0Qkxs8F3Z4QDSXOG%2Fimage.png?alt=media&#x26;token=9ae03add-4df6-467e-8cf9-09cf1eccc344" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
Visit the [Checkouts page](https://docs.inqud.com/explore/checkouts#checkout-statuses) to learn more about the various checkout statuses.
{% endhint %}

## Integration

#### 1. Create Checkout through Inqud API

{% embed url="<https://apireference.inqud.com/#tag/crypto-acquiring-checkouts/operation/user_crypto-acquiring_create-checkout>" fullWidth="false" %}

{% tabs %}
{% tab title="Fixed Price" %}
Request Example:

```http
POST https://api.inqud.com/v1/user/crypto-acquiring/{projectId}/checkouts
```

{% hint style="info" %}
`projectId` is the ID of the widget
{% endhint %}

| Header             | Value            |
| ------------------ | ---------------- |
| X-Token-API-Id     | {tokenApiId}     |
| X-Token-API-Secret | {tokenApiSecret} |

Request Body Example:

```json
{
    "clientOrderId": "1234567890",
    "expiresAt": "2024-12-01T12:00:00Z",
    "fixedAmount": {
        "amount": 100,
        "currency": "USD"
    },
    "returnUrl": "https://example.com/return",
    "name": "My shopping cart checkout",
    "type": "FIXED_PRICE"
}
```

Response Body Example:

```json
{
  "id": "CCO-8c4df2e6-8c0d-4fa6-bba8-4943038dd5c5",
  "projectId": "CAP-df02b127-6717-4a73-a231-5a57155308a5",
  "projectName": "test",
  "clientOrderId": "1234567890",
  "status": "NEW",
  "name": "My shopping cart checkout",
  "type": "FIXED_PRICE",
  "fixedAmount": {
    "currency": "USD",
    "amount": 100
  },
  "returnUrl": "https://example.com/return",
  "acquiringUrl": "https://paycrypto.inqud.com/checkout/CCO-8c4df2e6-8c0d-4fa6-bba8-4943038dd5c5",
  "createdAt": "2023-12-22T09:17:26.081523507Z",
  "expiresAt": "2024-12-01T12:00:00Z"
}
```

{% hint style="info" %}
The response example provided is a shortened version and does not include the full set of fields. For the complete response body details, please refer to the full [API specification](https://apireference.inqud.com/#tag/crypto-acquiring-checkouts/operation/user_crypto-acquiring_create-checkout).
{% endhint %}
{% endtab %}

{% tab title="Top Up" %}
Request Example:

```http
POST https://api.inqud.com/v1/user/crypto-acquiring/{projectId}/checkouts
```

{% hint style="info" %}
`projectId` is the ID of the widget
{% endhint %}

| Header             | Value            |
| ------------------ | ---------------- |
| X-Token-API-Id     | {tokenApiId}     |
| X-Token-API-Secret | {tokenApiSecret} |

Request Body Example:

```json
{
  "clientOrderId": "12345676890",
  "expiresAt": "2024-12-01T12:00:00Z",
  "name": "My website balance top up",
  "returnUrl": "https://example.com/return",
  "type": "NO_PRICE"
}
```

Response Example:

```json
{
  "id": "CCO-81162548-7d14-4b07-b7f5-f2c6eb3e901b",
  "projectId": "CAP-df02b127-6717-4a73-a231-5a57155308a5",
  "projectName": "test",
  "clientOrderId": "12345676890",
  "status": "NEW",
  "name": "My website balance top up",
  "type": "NO_PRICE",
  "returnUrl": "https://example.com/return",
  "acquiringUrl": "https://paycrypto.inqud.com/checkout/CCO-81162548-7d14-4b07-b7f5-f2c6eb3e901b",
  "createdAt": "2023-12-22T09:59:46.882256224Z",
  "expiresAt": "2024-12-01T12:00:00Z"
}
```

{% hint style="info" %}
The response example provided is a shortened version and does not include the full set of fields. For the complete response body details, please refer to the full [API specification](https://apireference.inqud.com/#tag/crypto-acquiring-checkouts/operation/user_crypto-acquiring_create-checkout).
{% endhint %}
{% endtab %}

{% tab title="Predefined Amounts" %}
{% hint style="warning" %}
[#predefined-amounts](https://docs.inqud.com/explore/widget#predefined-amounts "mention") come from the widget settings and cannot be changed via REST API requests.
{% endhint %}

Request Example:

```http
POST https://api.inqud.com/v1/user/crypto-acquiring/{projectId}/checkouts
```

{% hint style="info" %}
`projectId` is the ID of the widget
{% endhint %}

| Header             | Value            |
| ------------------ | ---------------- |
| X-Token-API-Id     | {tokenApiId}     |
| X-Token-API-Secret | {tokenApiSecret} |

Request Body Example:

```json
{
  "clientOrderId": "12345676890",
  "expiresAt": "2024-12-01T12:00:00Z",
  "name": "My website donation",
  "returnUrl": "https://example.com/return",
  "type": "SUGGESTED_FIXED_PRICE"
}
```

Response Example:

```json
{
  "id": "CCO-81162548-7d14-4b07-b7f5-f2c6eb3e901b",
  "projectId": "CAP-df02b127-6717-4a73-a231-5a57155308a5",
  "projectName": "test",
  "merchantDomain": "paycrypto.inqud.com",
  "clientOrderId": "12345676890",
  "status": "NEW",
  "name": "My website balance top up",
  "type": "SUGGESTED_FIXED_PRICE",
  "returnUrl": "https://example.com/return",
  "acquiringUrl": "https://paycrypto.inqud.com/checkout/CCO-81162548-7d14-4b07-b7f5-f2c6eb3e901b",
  "createdAt": "2023-12-22T09:59:46.882256224Z",
  "expiresAt": "2024-12-01T12:00:00Z"
}
```

{% hint style="info" %}
The response example provided is a shortened version and does not include the full set of fields. For the complete response body details, please refer to the full [API specification](https://apireference.inqud.com/#tag/crypto-acquiring-checkouts/operation/user_crypto-acquiring_create-checkout).
{% endhint %}
{% endtab %}
{% endtabs %}

#### 2. Redirect end user to acquiring URL

Extract `acquiringUrl` from Checkout response and redirect your end user to it.

#### 3. Receive a web-hook notification related to the checkout

{% content-ref url="web-hooks/checkout-web-hook" %}
[checkout-web-hook](https://docs.inqud.com/crypto-widget/integration/web-hooks/checkout-web-hook)
{% endcontent-ref %}
